Contraves-CMC
DC Servo Motors
If you need help, call (412) 492-8116
Servo Repair International, Inc. repairs and replaces many of the brands of servo motors, including Contraves-CMC.
Contraves-CMC
If your motor is not represented below, please call us as our capabilities are always expanding!
If your motor is not a Contraves/CMC, refer to our DC Servo Motor list to view a list of manufacturers we can service.
401/C401/C11 Series
Contraves / CMC servo models beginning with 401 have frames constructed with ceramic magnets. The series offers ten winding configurations for a range of maximum speeds from 2550 to 6000 RPM. The series has a continuous stall torque of 15 Lb. In. (1.7 Nm.) The series has maximum terminal voltages ranging from 27 to 180 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.

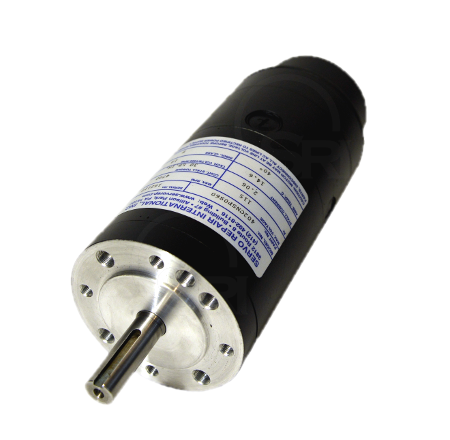

402/C402/C21 Series
Contraves / CMC servo models beginning with 402 have frames constructed with ceramic magnets. The series offers ten winding configurations for a range of maximum speeds from 1400 to 6000 RPM. The series has a continuous stall torque of 30 Lb. In. (3.4 Nm.) The series has maximum terminal voltages ranging from 48 to 180 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
403/C403/C31 Series
Contraves / CMC servo models beginning with 403 have frames constructed with ceramic magnets. The series offers ten winding configurations for a range of maximum speeds from 800 to 6000 RPM. The series has a continuous stall torque of 45 Lb. In. (5.0 Nm.) The series has maximum terminal voltages ranging from 85 to 180 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
404/C404/C41 Series
Contraves / CMC servo models beginning with 404 have frames constructed with ceramic magnets. The series offers ten winding configurations for a range of maximum speeds from 600 to 5600 RPM. The series has a continuous stall torque of 40 Lb. In. (4.5 Nm.) The series has maximum terminal voltages ranging from 115 to 180 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
R401 Series
Contraves / CMC servo models beginning with R401 have frames constructed with rare earth magnets. The series offers eighteen winding configurations for a range of maximum speeds from 1900 to 6000 RPM. The series has a continuous stall torque of 40 Lb. In. (4.5 Nm.) The series has maximum terminal voltage of 160 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.

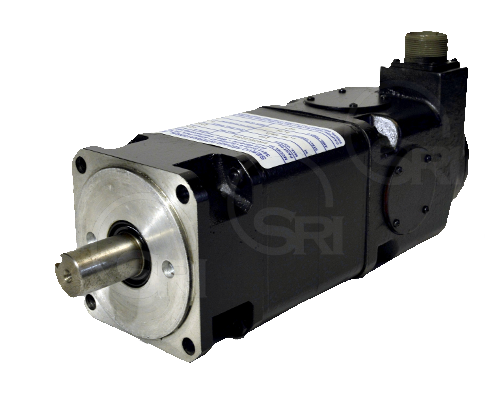

R402 Series
Contraves / CMC servo models beginning with R402 have frames constructed with rare earth magnets. The series offers eighteen winding configurations for a range of maximum speeds from 1100 to 6000 RPM. The series has a continuous stall torque of 72 Lb. In. (8.1 Nm.) The series has maximum terminal voltage of 160 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
R403 Series
Contraves / CMC servo models beginning with R403 have frames constructed with rare earth magnets. The series offers eighteen winding configurations for a range of maximum speeds from 675 to 4600 RPM. The series has a continuous stall torque of 108 Lb. In. (12.2 Nm.) The series has maximum terminal voltage of 160 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
R404 Series
Contraves / CMC servo models beginning with R404 have frames constructed with rare earth magnets. The series offers eighteen winding configurations for a range of maximum speeds from 550 to 3700 RPM. The series has a continuous stall torque of 144 Lb. In. (16.3 Nm.) The series has maximum terminal voltage of 160 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
F561 Series
Contraves / CMC servo models beginning with 56SCN or 56SDN are part of the F561 series. F561 motors have frames constructed with ceramic magnets. The series offers twenty winding configurations for a range of maximum speeds from 1550 to 3000 RPM. The series has a continuous stall torque of 75 Lb. In. (8.5 Nm.) The series has maximum terminal voltage of 216 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.

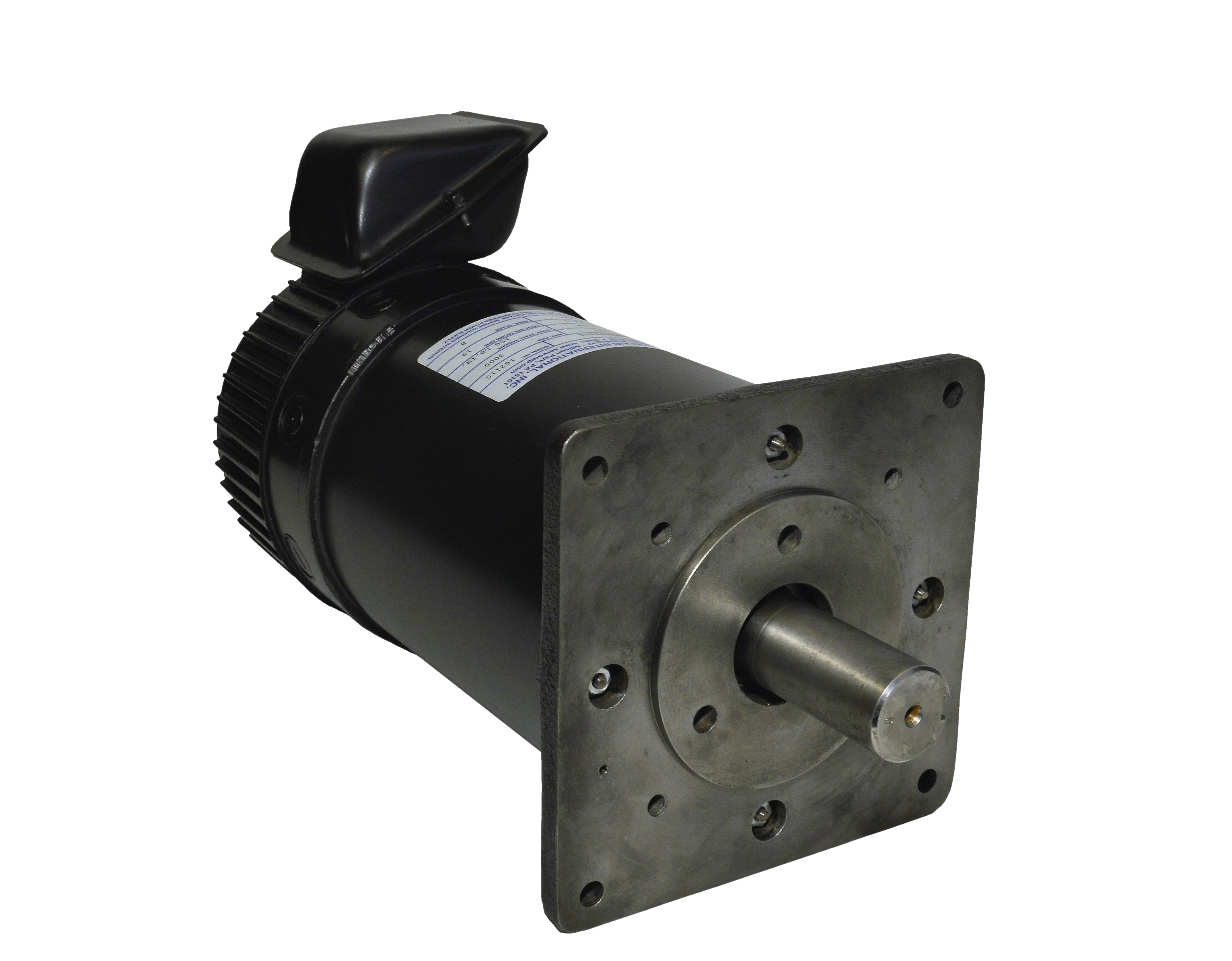

F562 Series
Contraves / CMC servo models beginning with 56MCN or 56MDN are part of the F562 series. F562 motors have frames constructed with ceramic magnets. The series offers twenty winding configurations for a range of maximum speeds from 1000 to 3000 RPM. The series has a continuous stall torque of 150 Lb. In. (16.9 Nm.) The series has maximum terminal voltage of 216 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
F563 Series
Contraves / CMC servo models beginning with 56LCN or 56LDN are part of the F563 series. F563 motors have frames constructed with ceramic magnets. The series offers twenty winding configurations for a range of maximum speeds from 520 to 3000 RPM. The series has a continuous stall torque of 225 Lb. In. (25.4 Nm.) The series has maximum terminal voltage of 216 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
F564 Series
Contraves / CMC servo models beginning with 56WDV, 56XCN, or 56XDN are part of the F564 series. F564 motors have frames constructed with ceramic magnets. The series offers twenty winding configurations for a range of maximum speeds from 600 to 3000 RPM. The series has a continuous stall torque of 300 Lb. In. (33.9 Nm.) The series has maximum terminal voltage of 216 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
401/C401/C11 Series
Contraves / CMC servo models beginning with 401 have frames constructed with ceramic magnets. The series offers ten winding configurations for a range of maximum speeds from 2550 to 6000 RPM. The series has a continuous stall torque of 15 Lb. In. (1.7 Nm.) The series has maximum terminal voltages ranging from 27 to 180 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
402/C402/C21 Series
Contraves / CMC servo models beginning with 402 have frames constructed with ceramic magnets. The series offers ten winding configurations for a range of maximum speeds from 1400 to 6000 RPM. The series has a continuous stall torque of 30 Lb. In. (3.4 Nm.) The series has maximum terminal voltages ranging from 48 to 180 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
403/C403/C31 Series
Contraves / CMC servo models beginning with 403 have frames constructed with ceramic magnets. The series offers ten winding configurations for a range of maximum speeds from 800 to 6000 RPM. The series has a continuous stall torque of 45 Lb. In. (5.0 Nm.) The series has maximum terminal voltages ranging from 85 to 180 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
404/C404/C41 Series
Contraves / CMC servo models beginning with 404 have frames constructed with ceramic magnets. The series offers ten winding configurations for a range of maximum speeds from 600 to 5600 RPM. The series has a continuous stall torque of 40 Lb. In. (4.5 Nm.) The series has maximum terminal voltages ranging from 115 to 180 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
R401 Series
Contraves / CMC servo models beginning with R401 have frames constructed with rare earth magnets. The series offers eighteen winding configurations for a range of maximum speeds from 1900 to 6000 RPM. The series has a continuous stall torque of 40 Lb. In. (4.5 Nm.) The series has maximum terminal voltage of 160 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
R402 Series
Contraves / CMC servo models beginning with R402 have frames constructed with rare earth magnets. The series offers eighteen winding configurations for a range of maximum speeds from 1100 to 6000 RPM. The series has a continuous stall torque of 72 Lb. In. (8.1 Nm.) The series has maximum terminal voltage of 160 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
R403 Series
Contraves / CMC servo models beginning with R403 have frames constructed with rare earth magnets. The series offers eighteen winding configurations for a range of maximum speeds from 675 to 4600 RPM. The series has a continuous stall torque of 108 Lb. In. (12.2 Nm.) The series has maximum terminal voltage of 160 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
R404 Series
Contraves / CMC servo models beginning with R404 have frames constructed with rare earth magnets. The series offers eighteen winding configurations for a range of maximum speeds from 550 to 3700 RPM. The series has a continuous stall torque of 144 Lb. In. (16.3 Nm.) The series has maximum terminal voltage of 160 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
F561 Series
Contraves / CMC servo models beginning with 56SCN or 56SDN are part of the F561 series. F561 motors have frames constructed with ceramic magnets. The series offers twenty winding configurations for a range of maximum speeds from 1550 to 3000 RPM. The series has a continuous stall torque of 75 Lb. In. (8.5 Nm.) The series has maximum terminal voltage of 216 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
F562 Series
Contraves / CMC servo models beginning with 56MCN or 56MDN are part of the F562 series. F562 motors have frames constructed with ceramic magnets. The series offers twenty winding configurations for a range of maximum speeds from 1000 to 3000 RPM. The series has a continuous stall torque of 150 Lb. In. (16.9 Nm.) The series has maximum terminal voltage of 216 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
F563 Series
Contraves / CMC servo models beginning with 56LCN or 56LDN are part of the F563 series. F563 motors have frames constructed with ceramic magnets. The series offers twenty winding configurations for a range of maximum speeds from 520 to 3000 RPM. The series has a continuous stall torque of 225 Lb. In. (25.4 Nm.) The series has maximum terminal voltage of 216 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
F564 Series
Contraves / CMC servo models beginning with 56WDV, 56XCN, or 56XDN are part of the F564 series. F564 motors have frames constructed with ceramic magnets. The series offers twenty winding configurations for a range of maximum speeds from 600 to 3000 RPM. The series has a continuous stall torque of 300 Lb. In. (33.9 Nm.) The series has maximum terminal voltage of 216 volts. Mounting flanges and shafts are available in NEMA or metric sizes and tachometers, brakes, encoders, and resolvers are optionally installed on some models.
Replacement Capabilities
Occasionally having an Contraves/CMC DC servo motor repaired is not the best option.
Extensive motor damage or unacceptable lead times, may make replacement options a more intelligent and economical choice. Servo Repair International provides various replacement options for many Contraves/CMC products. The older DC servo motors may be crossed over to newer products from Contraves/CMC or other competing manufacturers. We can also provide our own direct replacement DC servo motors as replacements. Many times just a simple feedback device crossover may be needed to increase turnaround time and better performance.
